Toro Greensmaster 3050 Control Pedal

Wählen Sie hier Ihre Zeichnung

17 Zeichnungen verfügbar

Shaft - cutting control assy

R106-6395

182,90 €*

Mow pedal assy

R106-6394

92,70 €*

RUBBER FOOT PAD - MOW

R93-7630

12,22 €*

RUBBER FOOT PAD - LIFT

R93-7631

12,54 €*

PIN - SPRING ROLL 5/32 X 1-1/2

R32121-35

1,88 €*

BEARING

R27-2320

24,20 €*

BRACKET - RED

R88-9630-01

80,26 €*

BRACKET - RED

R88-9640-01

80,26 €*

CUTTING LEVER - RED

R49-6200-01

81,75 €*

#10

Spanstift

RDM-321216

0,46 €*

#10

Stift 3/16 x 1 1/4"

R32121-6

0,80 €*

#11

Bolt - flanged serrated hex hd 3/8-16 x 3/4

R3234-1

2,18 €*

#12

Sicherungsmutter - 3/8-16 NYLON JAM

R3296-59

1,55 €*

#13

Unterlagscheibe 3/8 sae

R453011

0,33 €*

#14

Gummipad - Bremspedal

R93-7629

21,05 €*

#15

Strap - shaft

R10-8100-01

46,42 €*

#16

PIN - CLEVIS 5/16 X 1-1/8

R283-61

1,34 €*

#17

Sicherungsstift 1/8 X 5/8

R11M7012

0,53 €*

#18

YOKE

R282-2

24,53 €*

#19

NUT - JAM - 5/16-24

R3220-2

0,73 €*

#20

ROD - ADJUSTMENT

R27-2270

38,48 €*

#21

CONTROL ROD - CUTTING LEVER

R49-5430

108,97 €*

#22

SHAFT - BRAKE ASSY

R83-0160

234,72 €*

#23

PIN - MOW LOCKOUT

R93-9903

77,06 €*

#24

Buchse

R3-1506

4,71 €*

#25

LOCKOUT BRACKET - RED

R93-9901-01

138,68 €*

#26

DECAL - LOCK

R93-9898

9,22 €*

#27

MOW ARM - LOCKOUT

R93-9904

32,92 €*

#28

SPRING - COMPRESSION - LOCKOUT PIN

R76-0410

7,96 €*

#30

BOLT - HEX HD 3/8-16 X 2-3/4 GR5

R323-13

2,26 €*

#31

Schmiernippel

R302-5

1,02 €*

#32

Lift - pivot assy

R150273

183,24 €*

#33

Roller assy - lift pivot

R150274

22,65 €*

#34

Schraube 8-32 x 5/8 Hex

R150425

0,61 €*

#35

PIN - DOWELL - REMOVABLE

R150276

16,06 €*

#37

BOLT - SHOULDER ECCENTRIC

R83-2590

61,18 €*

#38

Feder - PIVOT - LIFT

R83-0080

28,12 €*

#40

LIFT - PIVOT

R106-6396

90,16 €*

#43

Unterlagscheibe

R3256-22

0,36 €*

#44

Hinge - upper

R10-7880

18,86 €*

#46

ROD GUARD - RED

R49-6110-01

98,98 €*

#47

Footrest plate - red

R83-0640-01

179,89 €*

#48

Fußmatte

R49-6120

55,81 €*

#49

DECAL - MOW/LIFT

R93-8075

9,35 €*

#50

BOLT - CARRIAGE 1/4-20 X 5/8

R3229-11

0,71 €*

#51

SCREW - BUTTON HD SOC CS 1/4-20 X 5/8

R3274-31

1,78 €*

#52

Scheibe 1/4

R453023

0,36 €*

#53

LATCH ASSY

R100-9819

188,97 €*

#54

Sicherungsbolzen

R400106

0,70 €*

#55

Unterlegscheibe 1/4"

R3253-3

0,15 €*

#56

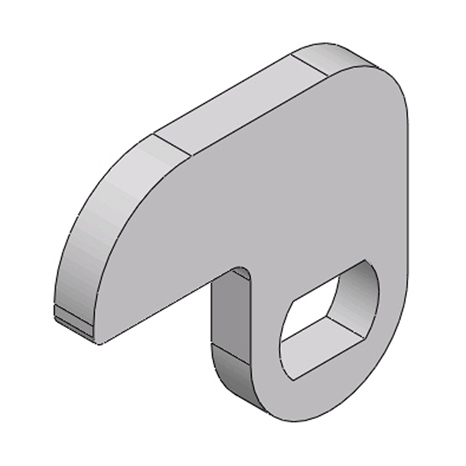

PARKING LATCH - BRAKE

R10-7850

150,60 €*

#57

Spring - torsion - brake latch

R10-8140

21,18 €*

#58

NUT - SPECIAL HF FLANGED

R32141-111

6,30 €*

#59

HINGE-LOWER

R95-1629

15,91 €*

#60

Sicherungsmutter, 1/4-20

R301504

0,46 €*

#61

PLATE - COVER - LH

R83-0200-01

67,55 €*

#62

Bolzen, 1/4-20 x 3/4

R321-4

0,86 €*

#63

NUT - 1/4-20 FLANGED SERR

R32128-33

0,92 €*

#64

DECAL - PARKING BRAKE

R93-8062

7,62 €*

#65

PLATE - SWITCH - REED

R100-9821

34,93 €*

#66

SENSOR

R104-2057

190,96 €*

#67

Light - led - 8 bulb flood

R112-9177

208,97 €*
