Toro Reelmaster 3100 D Verti Cut Reel Frame

Vælg din tegning her

1 tegninger til rådighed

Overhaul kit - roller

R114-5430

125,10 €*

Overhaul Kit - Roller

RDM-114-5430

123,23 €*

#10

Blade - vertical mower 1/16X7.25

R93-3038-03

6,39 €*

#10

Blade - carbide tip

R106-8625

45,30 €*

#20

Roller - verti-cut

R108-4293

15,02 €*

#21

ROLLER ASSY - 27" FRONT SOLID 2 1/2

R117-3759

629,20 €*

#22

ROLLER ASSY - 27" REAR SOLID 2 1/2

R117-3756

602,71 €*

#70

FRAME - CENTER - 27 IN UNIT

R112-8935

1.152,56 €*

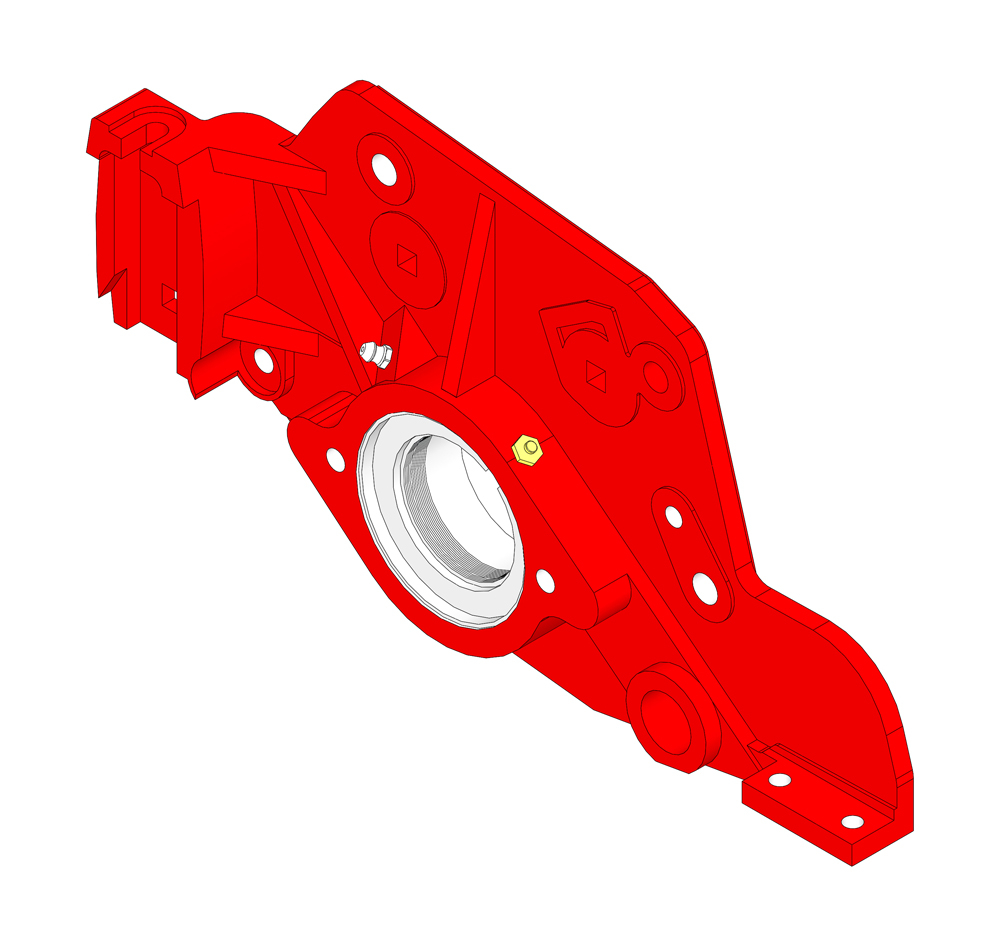

#71

PLATE-SIDE - LH - VERTICUT

R117-3764

647,40 €*

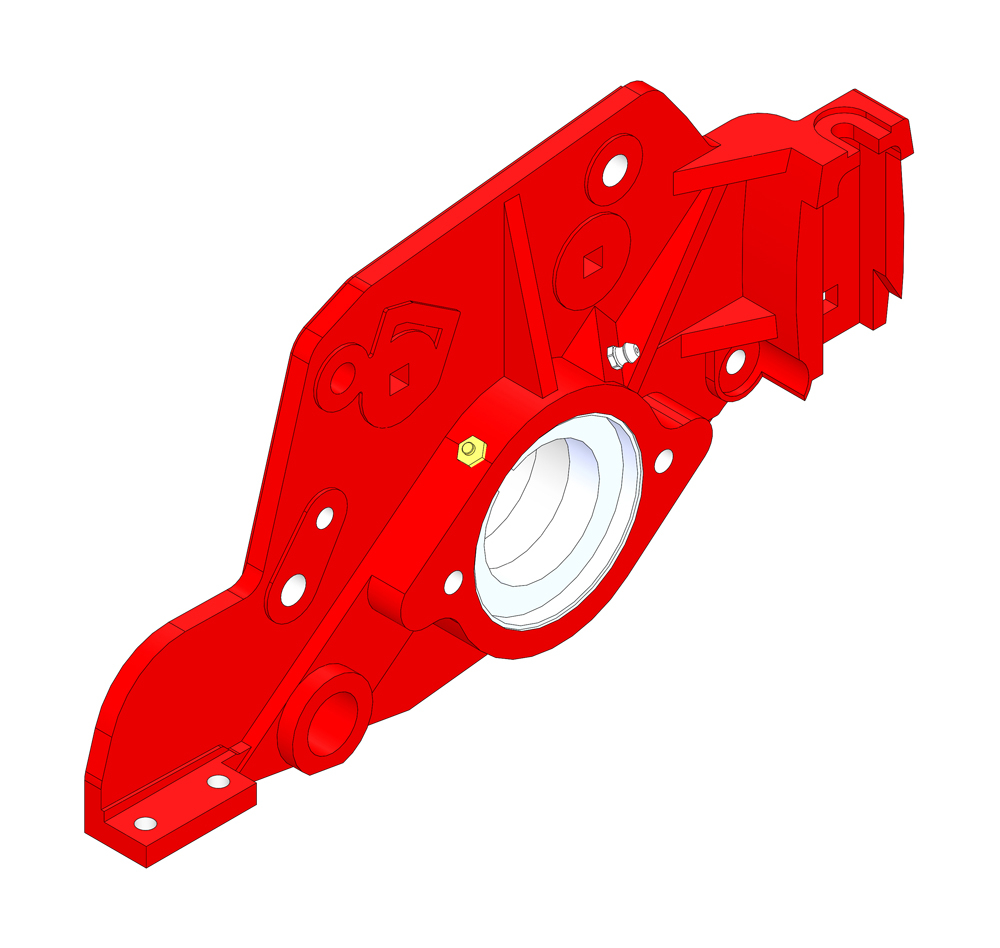

#72

PLAT E- SIDE - RH - VERTICUT

R117-3763

644,87 €*

#73

Bolt - carriage 3/8-16 x 1-1/4

R3231-25

1,06 €*

#74

TUBE- SUPPORT - 27 in Units

R112-8936

95,35 €*

#75

FRONT GRASS SHIELD ASSY

R112-8942

82,73 €*

#76

REAR GRASS SHIELD ASSY

R112-8944-01

129,74 €*

#77

Kickstand

R110-4088-03

51,81 €*

#78

Bracket - chain

R110-4058

46,54 €*

#79

Use R32128-19

R104-8301

1,33 €*

#80

PIN - LYNCH

R107-7400

15,35 €*

#81

SCRAPER-FULL FRONT ROLLER 2 1/2 IN

R117-3753-03

126,49 €*

#82

SCRAPER ROD ASSY - 27 IN

R117-0993

224,08 €*

#83

Bracket - rear roller

R106-3924

36,63 €*

#84

Bracket - front roller

R107-2952

78,30 €*

#85

SEAL - GREASE

R107-4028

34,36 €*

#86

Bearing

R93-2489

29,56 €*

#87

Nut - bearing adjuster

R107-2954

26,32 €*

#88

O-ring

R112-6967

4,32 €*

#89

WEIGHT

R119-0614-01

325,32 €*

#90

Bolt - hex hd 3/8-16 x 2-1/2 GR5

R101526

2,82 €*

#91

Bolt - shoulder

R107-2979

5,09 €*

#92

BOLT - HEX WASHER HD

R3234-11

1,56 €*

#93

WASHER - 1 IN INTERAL STAR

R3254-21

5,00 €*

#94

Pin - roller mounting

R108-4289

82,49 €*

#95

Bracket - adj

R108-4286

24,66 €*

#96

BOLT - CARRIAGE 1/4-20 X 5/8

R3230-7

0,85 €*

#97

PIN - BRIDGE - SNAP

R3290-355

4,40 €*

#98

LOCKNUT - 3/8-16 NYLON JAM

R3296-59

1,55 €*

#99

WASHER - FLAT 3/8 SAE Y/ZINC

R453011

0,33 €*

#100

SHIM - ROLLER - 1/4 IN - SLOTTED

R119-0626

5,31 €*

#101

Bracket - scraper - lh

R107-3279

40,23 €*

#102

Bracket - scraper - rh

R107-3281

40,23 €*

#103

Tab - stop - shield

R108-4961

59,16 €*

#104

Washer - flat

R3256-74

1,06 €*

#105

Insert - rh - verti-cut shaft

R108-4978

177,14 €*

#106

PLUG - PLASTIC SPINDLE HOUSING

R94-2703

3,05 €*

#107

LINK ASSY

R16-9759

104,76 €*

#108

SPACER

R93-6981

10,14 €*

#109

WASHER-HARDENED

R93-8806

3,19 €*

#110

Insert - lh - verti-cut shaft

R108-4977

177,14 €*

#111

NUT - JAM 1-3/8-12

R3220-25

47,42 €*

#112

WASHER - VERTICUT SHAFT 1/4 IN

R105-0173

33,89 €*

#113

SHAFT ONLY - V-CUT

R117-3760

725,92 €*

#114

SPACER - VERTICUT SHAFT 1/4 IN

R105-0177

12,96 €*

#115

Spacer - verticut shaft 1.2 in

R105-0172

27,07 €*

#116

BOLT - CARRIAGE 3/8-16 X 1-1/2

R3231-4

3,41 €*

#117

BOLT - HEX HD 5/16-18 X 1-1/8

R322-16

4,24 €*

#118

WASHER - FLAT 7/16

R453013

0,87 €*

#119

SHAFT - LONG - REAR ROLLER - 27" Units

R112-8918

185,71 €*

#120

DECAL - WARNING

R93-6688

4,61 €*

#121

LOCKNUT - BEARING

R114-3745

44,25 €*

#122

Seal

R112-7494

11,19 €*

#123

Bearing - stainless

R112-5290

23,43 €*

#124

Seal

R114-3717

5,00 €*

#125

SHAFT ASSY - V-CUT

R119-0625

825,12 €*

#126

Fitting - grease 471214

R302-5

1,02 €*

#127

SHAFT - FRONT ROLLER - 27" Units

R117-0957

179,21 €*

#128

NUT - SERRATED WASHER

R445722

1,57 €*

#130

BOLT - CARRIAGE 3/8-16 X 2-1/4

R3231-7

7,31 €*

#131

SPACER - WHEEL

R59-2580

12,97 €*

#132

BOLT - HEX WASHER HD 5/16-18 X 5/8

R3234-7

2,23 €*

#133

NUT - 1/2-20 ESNA JAM

R3296-28

2,03 €*

#134

Locknut - 5/16-18 flanged y/zinc

R104-8300

0,76 €*

#135

Bolt - hex tap 3/8-16 x 2-3/4

R112-7451

4,45 €*

#136

BOLT - HEX HD 5/16-18 X 3 GR5

R322-14

3,05 €*

#137

BUSHING - LINK BAR

R94-8945

5,86 €*

#138

BOLT - HEX HD 3/8-16 X 1 GR5 YZ

R323-6

0,93 €*

#139

NUT - FLANGED WHIZ - 3/8-16

R32128-43

1,00 €*

#140

Bolt - soc hd cap 5/16-18 x 2-1/2

R107-7773

16,38 €*

#141

Set screw - 1/4 x 1-1/4 sq hd

R107-7447

2,01 €*
