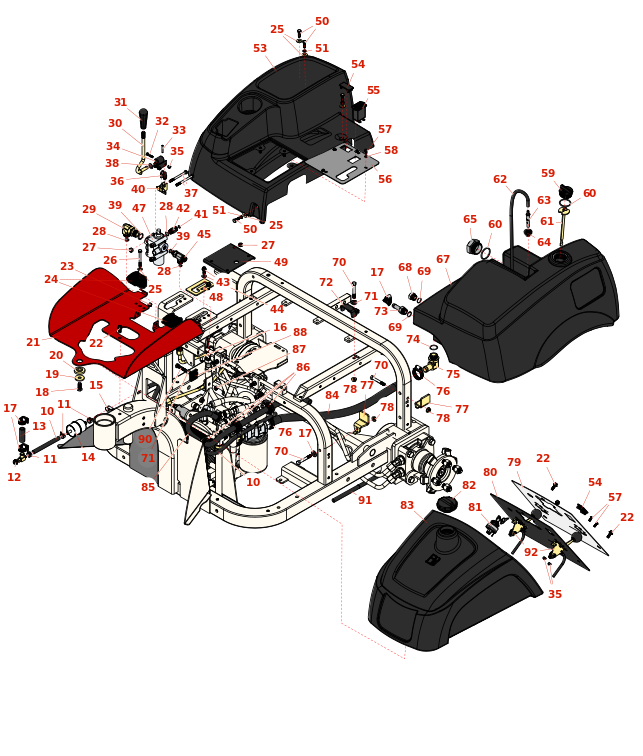

Toro Sand Pro 3040 Lift Valve Hydraulic and Fuel Tanks

Vælg din tegning her

8 tegninger til rådighed

#10

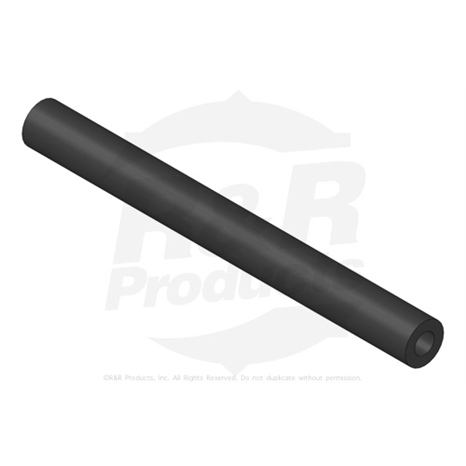

Hose-fuel

R109-0660

9,45 €*

#11

CLAMP - SPRING - HOSE 1/4

R2412-98

1,26 €*

#12

NEEDLE VALVE - IN LINE

R83-1390

67,70 €*

#13

Hose-fuel

R110-3371

7,47 €*

#14

Filter - fuel

R825619

9,96 €*

#15

CLAMP - RUBBER COATED

R2412-73

6,03 €*

#16

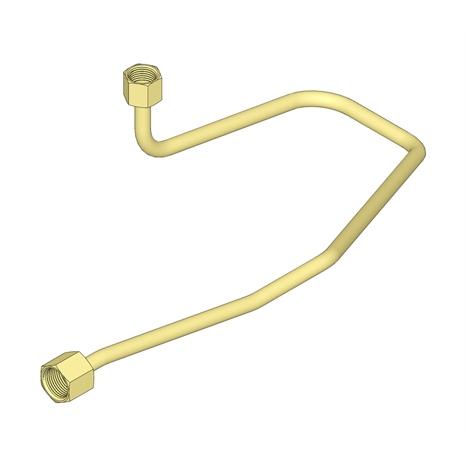

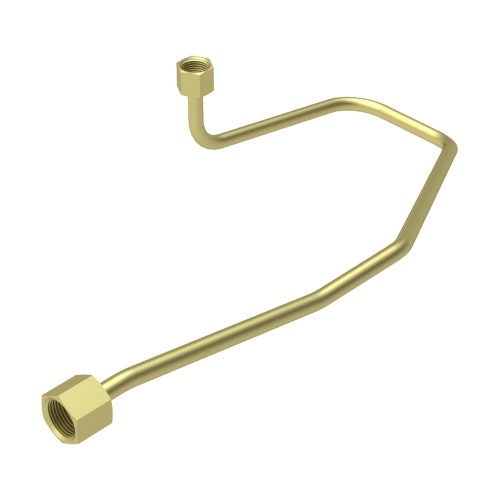

TUBE ASSY

R108-8416

112,51 €*

#17

CLAMP - HOSE 1/2

R2412-36

2,31 €*

#18

Bolt - hex hd 3/8-16 x 7/8

R400260

2,02 €*

#19

WASHER - ISOLATOR BUSHING

R63-8410

1,23 €*

#20

BUSHING - RUBBER - FLANGED

R240-11

3,78 €*

#21

Bracket-mount - tank

R108-6895-01

302,15 €*

#22

SCREW - HEX WAS HD

R32144-10

4,03 €*

#23

Locknut - 1/4-20 esna flanged

R104-7201

1,74 €*

#24

Clamp

R107-4543

15,55 €*

#25

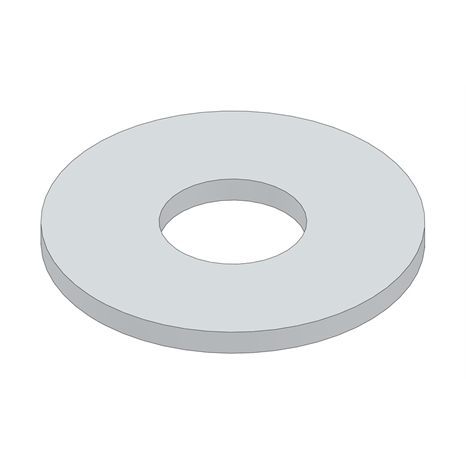

WASHER - FLAT

R3256-78

1,88 €*

#25

Washer - flat 1/4 yellow

R3256-22

0,36 €*

#26

HEX BOLT 1/4-20 x 2 1/4

R321-18

3,07 €*

#26

BOLT - HEX HD 1/4-20 X 2-1/2 GR5

R400124

2,20 €*

#27

NUT - 1/4-20 FLANGED SERR

R32128-33

0,92 €*

#27

Borg Moer - Hole Cutter

R301504

0,46 €*

#28

O-RING

R237-22

0,98 €*

#29

FITTING - HYD

R340-77

25,88 €*

#30

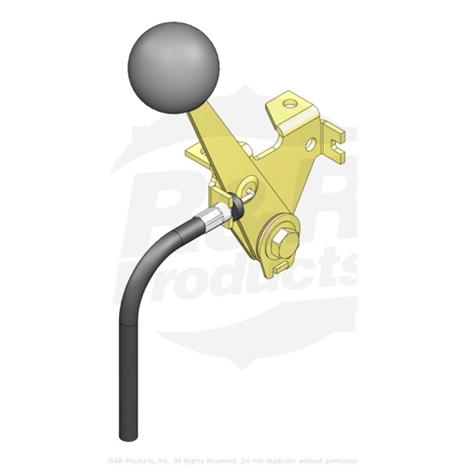

Rear lever assy

R108-7942

82,99 €*

#31

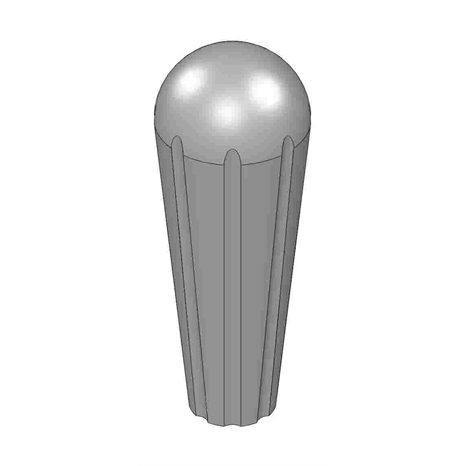

KNOB-TAPERED

R98-0152

31,50 €*

#32

BOLT

R3290-360

6,36 €*

#33

PIN - ROLL

R32121-73

0,29 €*

#34

PIVOT

R98-8159

82,33 €*

#35

NUT - #10 LOCK

R3296-2

1,34 €*

#36

LINK - OFFSET

R2710-20

14,07 €*

#37

BOLT

R321-23

3,90 €*

#38

WASHER - SPRING WAVE

R3290-477

1,09 €*

#39

O-RING

R237-42

1,25 €*

#40

BRACKET-PIVOT

R88-8480

25,79 €*

#41

O-ring

R237-21

0,76 €*

#42

FITTING - HYD STRAIGHT

R340-92

11,37 €*

#43

BOLT - 1/4-20 X 3/4 SERR HEX FLANGED

R3234-33

1,29 €*

#44

Washer - flat 1/4

R453023

0,36 €*

#45

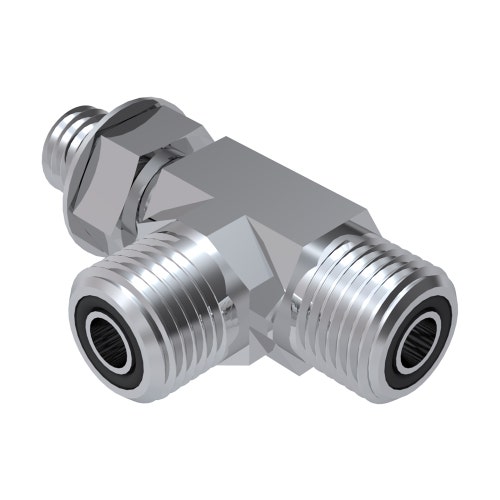

FITTING-TEE

R340-86

35,54 €*

#47

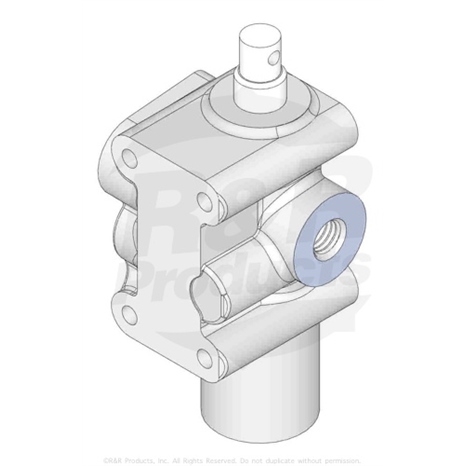

VALVE ASSY

R43-1710

636,04 €*

#48

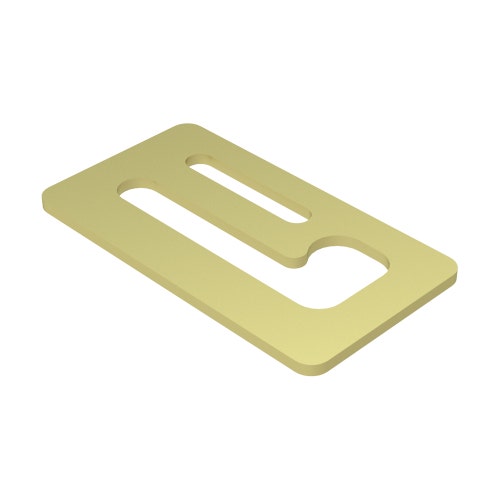

Plate-guide, lever

R108-7941

24,79 €*

#49

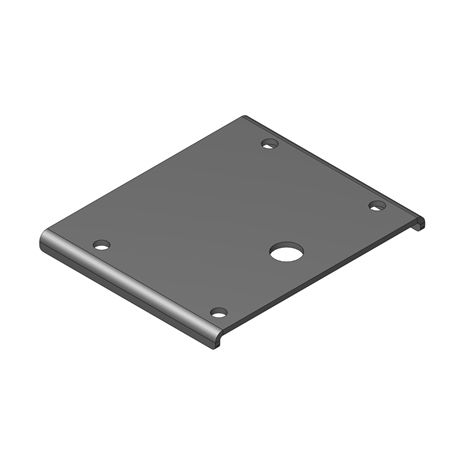

Plate-support - con

R108-7995-03

32,98 €*

#50

Bolt - hex hd 1/4-20 x 7/8

R321-5

0,52 €*

#51

Washer - lock 1/4 int star z

R3254-8

0,13 €*

#53

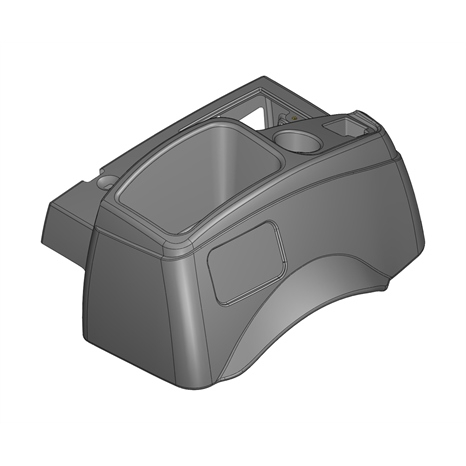

CONSOLE

R108-2936

255,41 €*

#54

PLUG-HOLE

R99-7420

7,05 €*

#55

HOUR METER

R1-513374

89,67 €*

#56

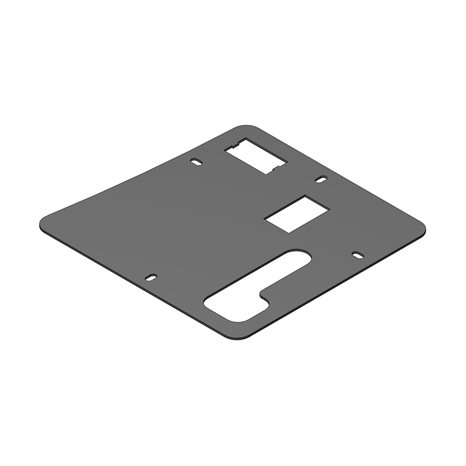

Panel-control

R108-7909-03

34,04 €*

#57

SCREW-HEX WASHER HD 10-24 X 1/2

R3290-321

6,38 €*

#58

WASHER - 10 FLAT

R3256-14

0,86 €*

#59

PLUG-OIL

R93-7498

22,72 €*

#60

O-RING

R237-101

3,21 €*

#61

Dipstick assy

R108-7996

52,51 €*

#62

Hose-fuel

R110-8181

11,35 €*

#63

Fitting-vent, tank

R110-1372

48,06 €*

#64

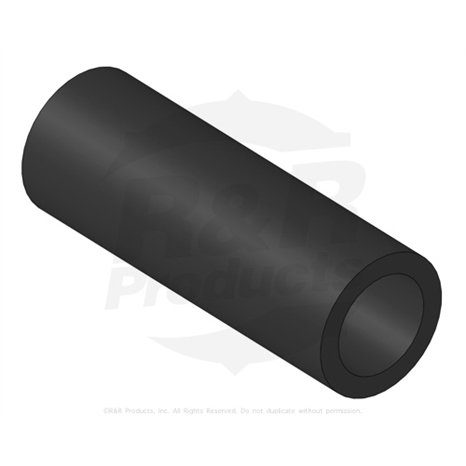

BUSHING

R46-6560

5,37 €*

#65

Plug-hh

R108-8468

30,02 €*

#67

Tank-hyd

R108-2937

1.942,44 €*

#68

PLUG - DRAIN - HYD TANK

R353-550

10,49 €*

#69

O-RING

R237-79

2,24 €*

#70

Bolt - 5/16-18 x 2 1/2 hx hd

R322-12

3,40 €*

#71

WASHER - FLAT 5/16 SAE

R453009

0,38 €*

#72

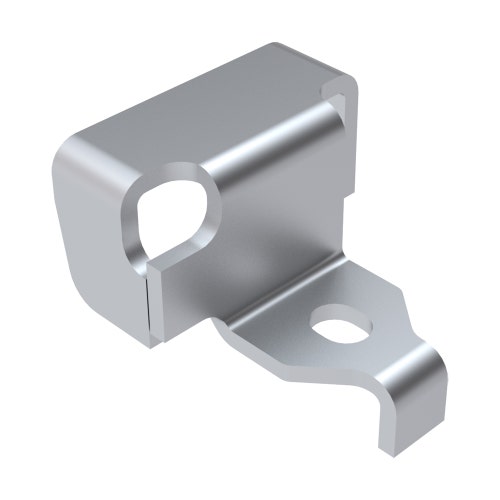

Clamp-tank

R108-7903

41,09 €*

#73

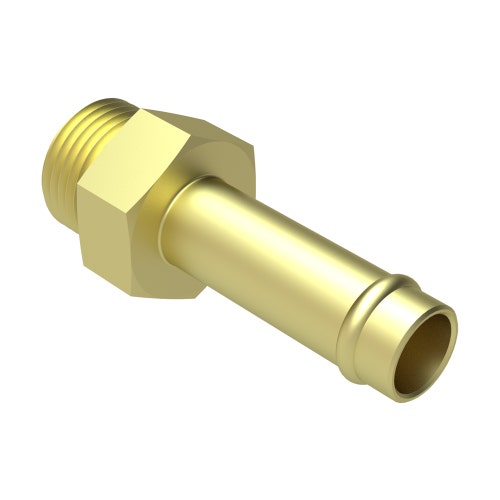

FITTING-STRAIGHT

R354-121

27,99 €*

#74

O-RING

R237-81

3,17 €*

#75

FITTING - HYD 90

R353-987

86,54 €*

#76

CLAMP - WORM 9/16-1 1/4

R2412-129

5,09 €*

#77

Clamp-tank, hyd

R108-7965

27,44 €*

#78

Locknut - 5/16-18 flanged y/zinc

R104-8300

0,76 €*

#79

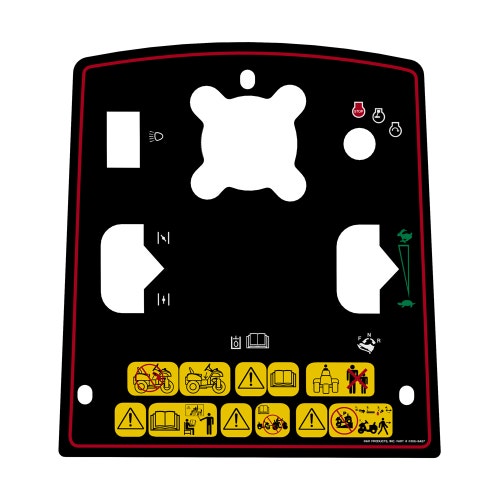

DECAL-DASH

R108-8487

93,23 €*

#80

Panel-dash

R108-6896-03

102,89 €*

#81

Switch - key 6 lead

R83-0020

64,48 €*

#82

R126-1789 fuel cap - ratcheting

R126-1789

53,66 €*

#82

CAP - FUEL w/TETHER

R115-5304

29,79 €*

#82

CAP - FUEL W/TETHER

R93-7170

58,25 €*

#83

TANK-FUEL

R108-2938

579,82 €*

#84

Hose-suction - tank

R108-5483

43,34 €*

#85

Hose-return

R110-1325

53,29 €*

#86

GROMMET - RUBBER

R240-4

16,43 €*

#87

LOCKNUT - 5/16-18 ESNA

R3296-29

2,12 €*

#88

CLAMP - TUBE

R56-7973

22,77 €*

#90

BOLT - HEX HD 5/16-18 X 1-1/2

R322-7

1,74 €*

#91

Hose-fuel

R110-3372

38,12 €*

#92

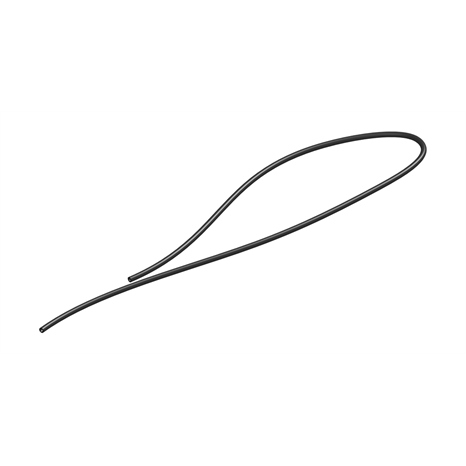

Cable assy - throttle

R108-7946

96,45 €*
