Toro Greensmaster TriFlex 3300 Front Rear Wheels

Vælg din tegning her

5 tegninger til rådighed

Seal kit - hyd motor

R76-0800

83,59 €*

#41

Wheel - with valve stem - white

R217-60

144,95 €*

#42

Stem - Valve w/ Cap

R232-27

9,52 €*

#50

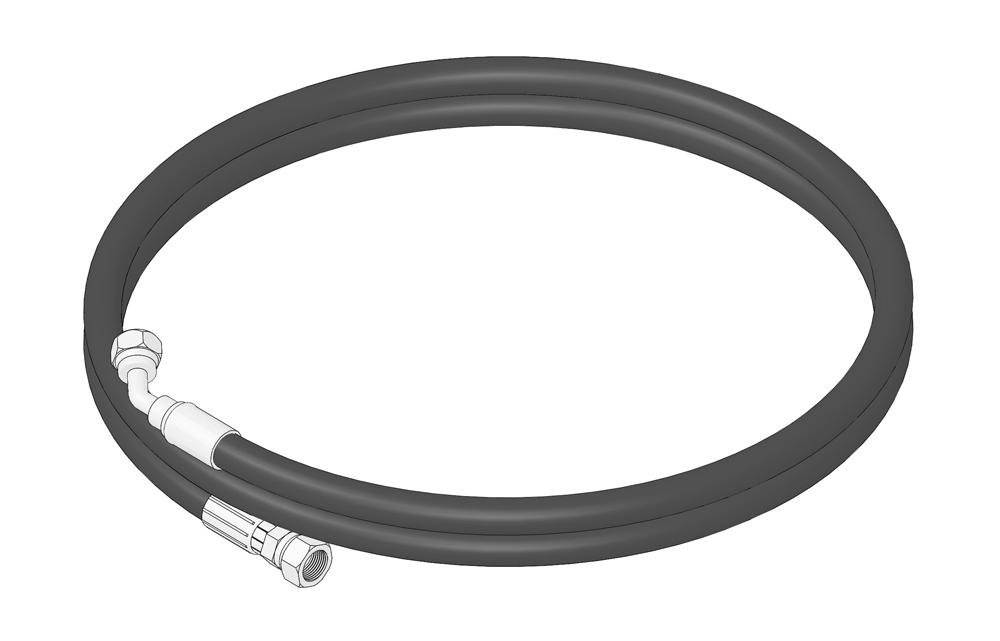

HYD HOSE ASM

R119-8123

228,28 €*

#50

HYD HOSE ASSY

R125-5168

80,95 €*

#50

HYD HOSE ASSY

R125-5166

102,89 €*

#50

HYD HOSE ASSY

R117-3683

152,22 €*

#50

HYD HOSE ASM

R119-8124

210,50 €*

#70

STUD - WHEEL

R114-3918

3,96 €*

#71

BOLT - 1/2-13 X 1 3/4 HX HD FL

R3234-22

28,35 €*

#72

BOLT - FLANGED HEX 1/2-13 X 1-1/4

R3234-38

7,19 €*

#74

R121-3605 ball joint

R121-3605

142,79 €*

#74

JOINT - BALL

R117-9875

99,28 €*

#75

SPACER - CYLINDER

R120-2026

15,78 €*

#76

Nut - 5/8 - 18 hex

R443828

1,83 €*

#77

GROMMET - RUBBER

R240-5

17,73 €*

#78

RING - RETAINING, EX

R32151-104

8,58 €*

#79

Ball Joint

R132-6959

59,63 €*

#80

Bearing - tapered

R254-70

45,83 €*

#81

Cup

R254-61

16,15 €*

#82

Lager

R500596

16,92 €*

#83

CUP - BEARING

R254-72

5,49 €*

#84

Bearing - tapered

R254-94

10,13 €*

#85

WASHER - STEERING FORK

R18-6320

5,55 €*

#86

Nut - 1-1/4-12 slotted

R32136-9

14,14 €*

#87

SEAL - HUB

R112-1690

19,18 €*

#88

Bearing - tapered

R254-92

19,97 €*

#89

WASHER-SPINDLE

R117-8259

4,53 €*

#90

NUT - LOCK RETAINER

R93-0307

2,94 €*

#91

CAP-DUST

R241-119

11,68 €*

#92

Nut - 1/2-20 wheel

R242-50

2,07 €*

#93

CABLE- BRAKE - RH

R115-9412

217,34 €*

#94

CABLE- BRAKE - LH

R114-9996

210,79 €*

#95

GRIP-HANDLE

R21-1880

12,02 €*

#96

WHEEL MOTOR - LH

R117-4303

1.878,86 €*

#96

WHEEL MOTOR - RH

R117-4302

1.878,86 €*

#97

KEY - WOODRUFF 5/16 X 1

R3257-42

4,14 €*

#98

Bolt - hex hd gr 5

R325-7

1,52 €*

#99

BRAKE ASSY - LH

R115-9440

334,66 €*

#99

BRAKE ASSY - RH

R115-9441

334,66 €*

#100

BRAKE SHOE

R151420

74,52 €*

#101

RETURN SPRING - BRAKE

R151421

4,01 €*

#102

SPRING - HOLD DOWN - BRAKE

R151422

3,29 €*

#103

STUD - KEEPER - BRAKE

R151424

2,38 €*

#104

STUD - DRIVE 1/2-20 x 2

R85-6540

12,85 €*

#105

DRUM - BRAKE

R115-2663

107,92 €*

#106

RUBBER FOOT PAD - FORWARD

R74-9100

17,76 €*

#107

RUBBER FOOT PAD - REVERSE

R74-9110

14,96 €*

#108

LOCK-NEUTRAL

R94-1300

144,00 €*

#109

SPACER

R94-1371

22,12 €*

#110

ROD END - BALL JOINT

R2411-41

53,93 €*

#111

BUSHING-SPLIT

R256-311

30,56 €*

#112

BALL JOINT Zie RDM-2411-38

R2411-38

21,77 €*

#113

SHAFT-PEDAL, PIVOT

R94-1386

57,86 €*

#114

TRUNNION - BRACKET

R94-1374

28,60 €*

#115

TRUNNION - BRACKET

R94-1375

28,60 €*

#116

Bolt - hex hd M8 x 50

R94-3489

2,50 €*

#117

NUT - JAM 8MM X 1.25

R33014-00

0,46 €*

#118

BOLT - HEX HD 1/4-20 X 1-1/2

R400116

1,71 €*

#119

Washer - flat 1/4 yellow

R3256-22

0,36 €*

#120

WASHER - FLAT 6MM

R24M7139

1,67 €*

#121

SPACER

R99-3545

8,86 €*

#122

NUT-LOCK, NI

R3296-56

2,15 €*

#123

Use R32128-19

R104-8301

1,33 €*

#124

Bolt - hex hd M8-1.25 x 15

R33114-016

1,05 €*

#125

WASHER - FLAT 3/8 SAE Y/ZINC

R453011

0,33 €*

#126

Bolt - hex hd M10 x 16

R33115-016

2,21 €*

#127

FITTING - HYD

R340-18

34,27 €*

#128

FITTING - HYD STRAIGHT

R340-92

11,37 €*

#129

O-RING

R237-22

0,98 €*

#130

O-ring

R237-21

0,76 €*

#131

Pin - cotter 1/4 x 2 1/2

R3272-37

1,36 €*

#132

BOLT - HX HD 3/8-16 X 3 3/4

R323-42

8,01 €*

#133

NUT - HEX - WHEEL MOTOR 1-20

R26-3790

24,04 €*

#134

BOLT - HEX HD 5/16-18 X 5/8

R322-2

0,80 €*

#135

Locknut - esna 6MM x 1.0

R33023-00

0,50 €*

#136

O-RING

R237-79

2,24 €*

#137

PEDAL - FORWARD ASSY

R49-6440-03

57,06 €*
