Toro Greensmaster 3150 Q Brakes Traction Control

Vælg din tegning her

18 tegninger til rådighed

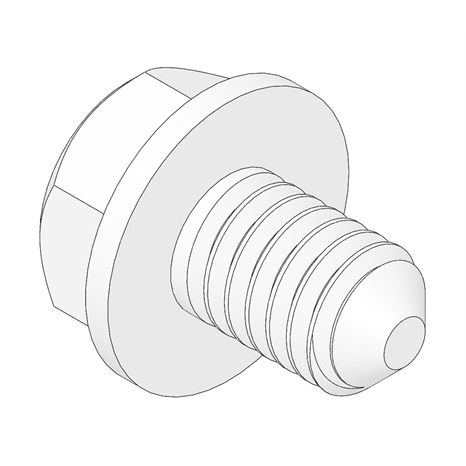

#10

NUT - SPECIAL HF FLANGED

R32141-111

6,30 €*

#11

BOLT - CARRIAGE

R3229-1

2,94 €*

#12

SCREW - BUTTON HD SOC CS 1/4-20 X 5/8

R3274-31

1,78 €*

#13

Washer - flat 1/4

R453023

0,36 €*

#14

Bolt - carriage 5/16-18 x 3/4

R3230-1

0,88 €*

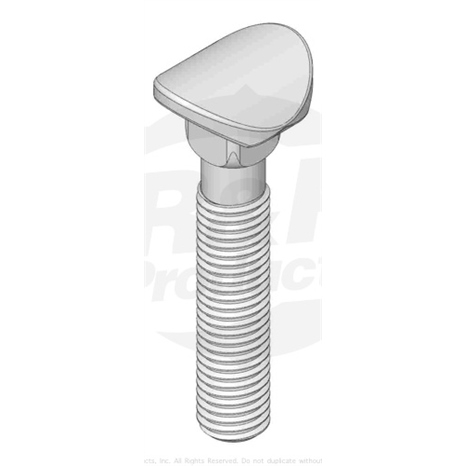

#15

BOLT - CONTOUR PLOW BOLT

R17-9420

8,00 €*

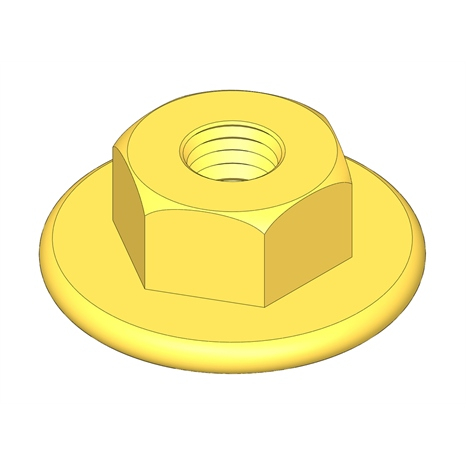

#16

NUT - SERRATED WASHER

R445722

1,57 €*

#17

BOLT - HEX HD 1/4-20 X 5/8

R400106

0,70 €*

#17

BOLT - 1/4-20 X 5/8 HWH

R99-6810

3,58 €*

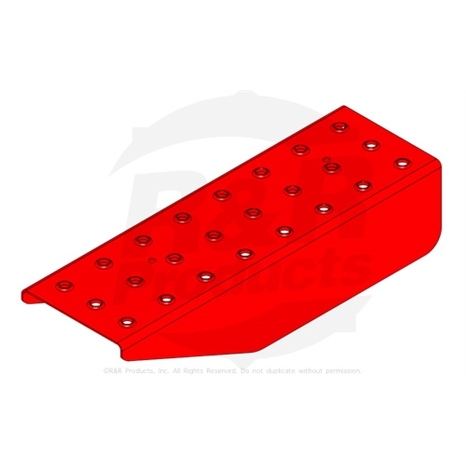

#18

PLAT E- FOOTREST

R105-0463-01

340,63 €*

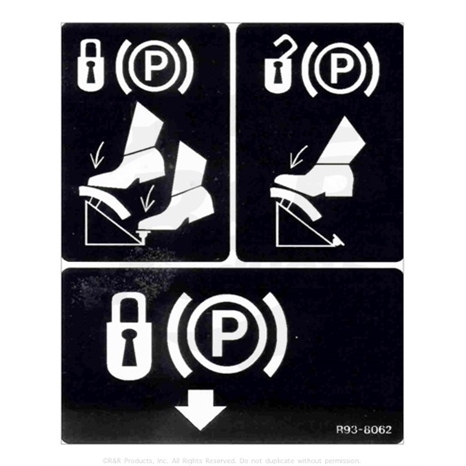

#19

DECAL - PARKING BRAKE

R93-8062

7,62 €*

#20

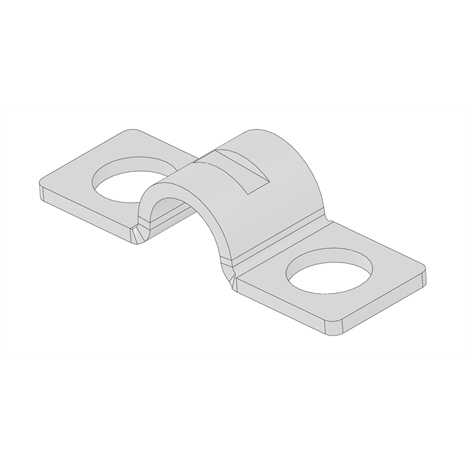

CLAMP-CABLE

R93-2279

13,03 €*

#21

CABLE - LOCK - NEUTRAL

R105-5444

156,61 €*

#22

NUT - 10-32

R444312

0,22 €*

#23

BALL JOINT Zie RDM-2411-38

R2411-38

21,77 €*

#24

RING-RETAINING - EXTERNAL

R32120-47

2,17 €*

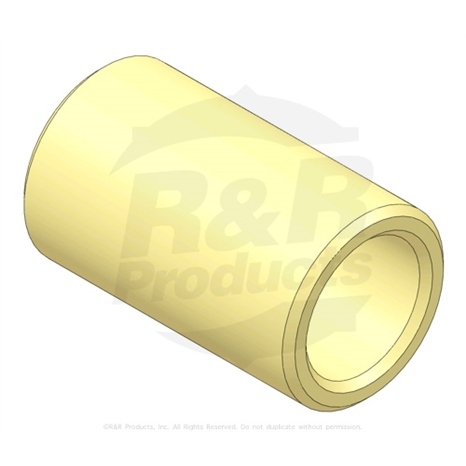

#25

BUSHING - FLANGED

R256-155

5,37 €*

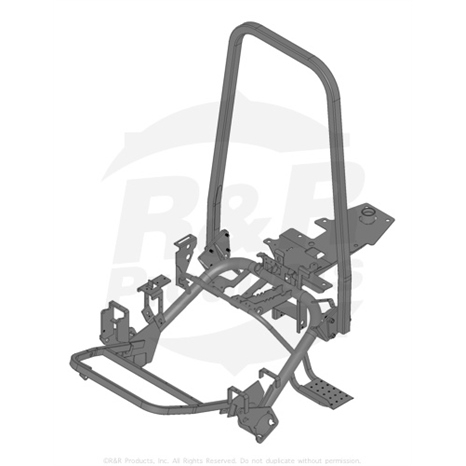

#26

FRAME ASSY

R112-0217-01

5.521,77 €*

#27

BRACKET - BULKHEAD

R107-2552-01

37,97 €*

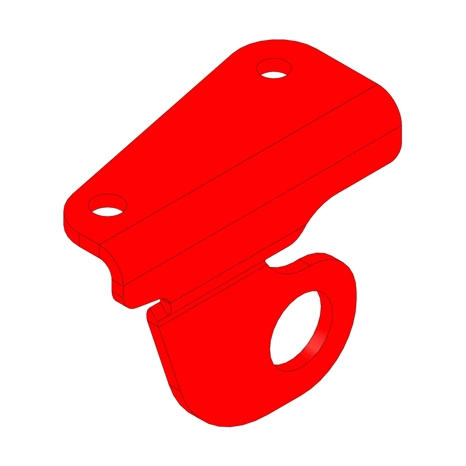

#28

BRACKET-BRAKE, RH

R105-0440-01

69,91 €*

#29

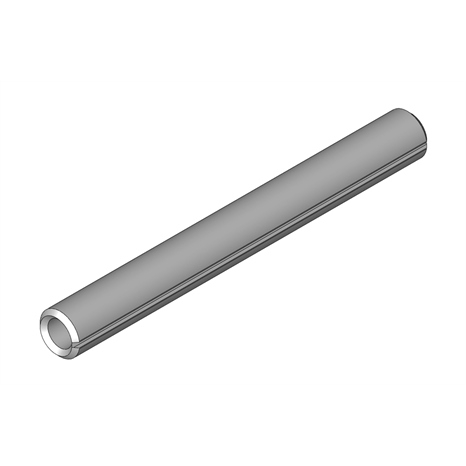

PIN - SPRING ROLL 5/32 X 1-1/2

R32121-35

1,88 €*

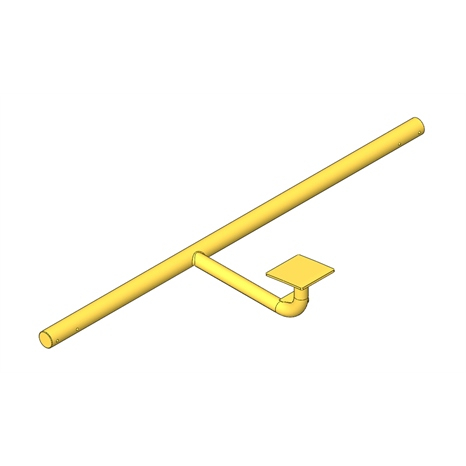

#30

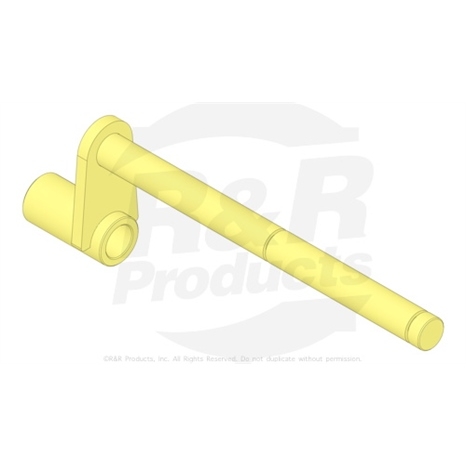

SHAFT - BRAKE ASSY

R83-0160

234,72 €*

#31

PLATE - SWITCH - REED

R100-9821

34,93 €*

#32

Locknut - esna 6MM x 1.0

R33023-00

0,50 €*

#33

RUBBER FOOT PAD - BRAKE

R93-7629

21,05 €*

#34

SENSOR

R104-2057

190,96 €*

#35

WASHER - FLAT 6MM

R24M7139

1,67 €*

#36

BOLT - HEX WASHER M6-1.0 X 12

R33113-016

0,51 €*

#37

Borg Moer - Hole Cutter

R301504

0,46 €*

#38

HINGE-LOWER

R95-1629

15,91 €*

#39

ROD-CONNECTING

R105-5430

129,66 €*

#40

LATCH ASSY

R100-9819

188,97 €*

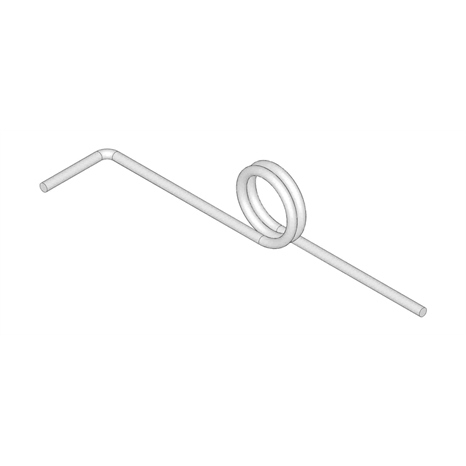

#41

Spring - torsion - brake latch

R10-8140

21,18 €*

#42

BOLT - HEX HD 3/8-16 X 1 GR5 YZ

R323-6

0,93 €*

#43

BRACKET - RED

R88-9640-01

80,26 €*

#44

Use R32128-19

R104-8301

1,33 €*

#45

LOCKNUT - 3/8-16 NYLON JAM

R3296-59

1,55 €*

#46

PIN - CLEVIS 5/16 X 1-1/8

R283-61

1,34 €*

#47

Fitting - grease 471214

R302-5

1,02 €*

#48

Strap - shaft

R10-8100-01

46,42 €*

#49

PIN - COTTER 3/32 X 3/4

R1023-4

0,61 €*

#50

YOKE

R282-2

24,53 €*

#51

NUT - JAM - 5/16-24

R3220-2

0,73 €*

#52

ROD - ADJUSTMENT

R27-2270

38,48 €*

#53

Locknut - 5/16-18 flanged y/zinc

R104-8300

0,76 €*

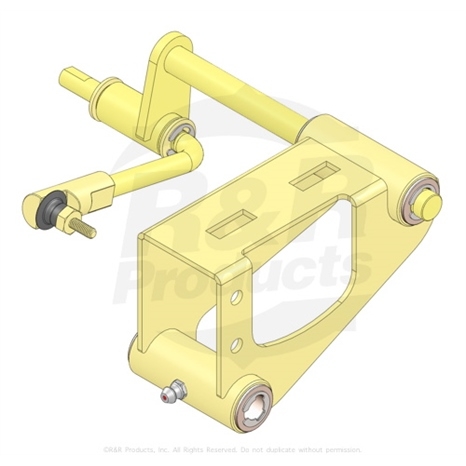

#54

PIVOT MOUNT ASSY

R106-4620

161,41 €*

#55

Nut - 3/8-16 yel hex

R3217-7

0,39 €*

#56

LOCK ASSY

R115-3256

117,88 €*

#57

SUPPORT ASSY

R106-4621

110,23 €*

#58

BUSHING - FLANGED

R256-116

5,84 €*

#59

WASHER - FLAT 3/8 SAE Y/ZINC

R453011

0,33 €*

#62

INSERT - NUT

R32148-6

3,81 €*

#63

BOLT - HEX HD 3/8-16 X 2-3/4 GR5

R323-13

2,26 €*

#64

Bolt - hex hd 3/8-16 x 2-1/2 GR5

R101526

2,82 €*

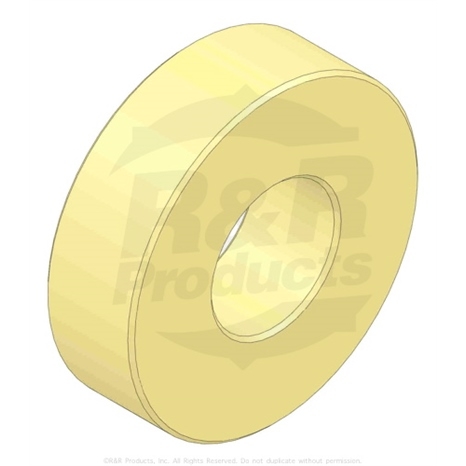

#65

SPACER-TUBULAR

R80-0650

9,66 €*

#66

ROD END - BALL JOINT

R2411-41

53,93 €*

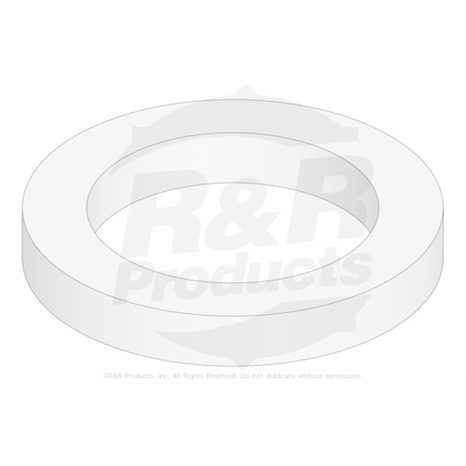

#67

WASHER-FLAT

R105-8318

5,52 €*

#68

BOLT - HEX HD 1/4-20 X 1-3/4 GR5

R400118

2,20 €*

#69

NUT - 1/4-28 JAM

R3220-1

0,23 €*

#70

CABLE - TRACTION CONTROL

R105-5445

182,15 €*

#71

SPACER - TRACTION PEDAL

R105-5429

20,45 €*

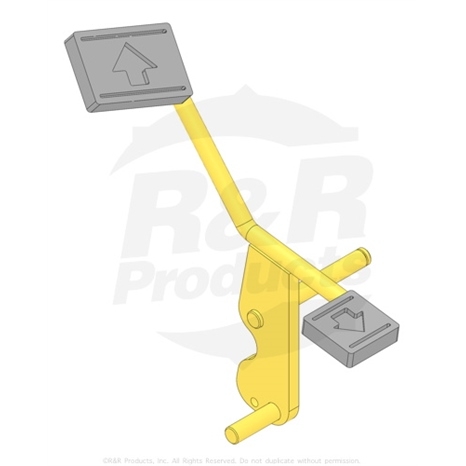

#72

TRACTION PEDAL ASSY

R105-5421-01

204,60 €*

#73

RUBBER FOOT PAD - REVERSE

R74-9110

14,96 €*

#74

NUT-LOCK, NI

R3296-56

2,15 €*

#75

PEDAL - FORWARD ASSY

R49-6440-03

57,06 €*

#76

PIN - SPRING ROLL 5/32 X 1

R32121-45

0,40 €*

#77

RUBBER FOOT PAD - FORWARD

R74-9100

17,76 €*

#78

CLAMP - CABLE

R93-2092

8,14 €*

#79

BOLT - HX WAS LOCKING HEAD

R9266934

7,94 €*

#80

PLATE - COVER - LH

R83-0200-01

67,55 €*

#81

BOLT - HEX HD 1/4-20 X 3/4

R321-4

0,86 €*

#82

NUT - 1/4-20 FLANGED SERR

R32128-33

0,92 €*
