Toro Greensmaster 3250-D Spiker Unit - Model 04494

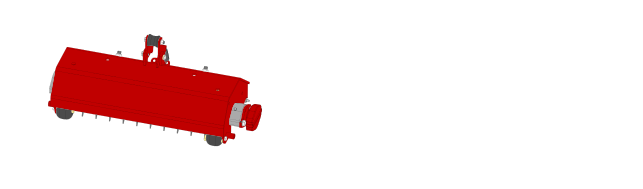

Toro Greensmaster 3250 D Complete Spiker Unit

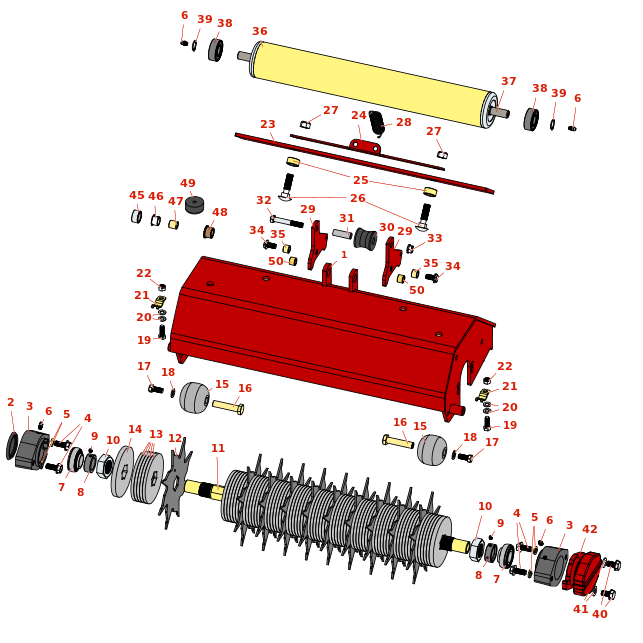

Toro Greensmaster 3250 D Spiker Reel Frame

Spiker unit - complete

R150236

5.487,58 €*

Cap - protective bearing housing

R150485

1,67 €*

Frame - spiker

R100-6443-01

913,93 €*

Plate - pivot

R100-6446-01

35,19 €*

Spacer

R100-6447

11,27 €*

Spacer - lift roller

R100-6448

19,87 €*

Lift roller

R100-6449

18,98 €*

Plate - spring mounting

R100-9818-01

34,47 €*

Bolt - hex hd 3/8-16 x 2-1/2 GR5

R101526

2,82 €*

Bushing

R3-1506

4,71 €*

Fitting - grease 471214

R302-5

1,02 €*

Nut - jam v-cut shaft

R3220-18

12,35 €*

Bolt - flanged serrated hex hd 3/8-16 x 3/4

R3234-1

2,18 €*

Screw - set 1/4-28 x 1/4

R3245-35

0,94 €*

Washer - flat .733 x .381 x .058 yz

R3256-45

0,59 €*

Washer - flat

R3256-74

1,06 €*

Locknut - 3/8-16 nylon

R3296-39

2,81 €*

Locknut - 12MM x 1.75MM esna

R33026-00

2,11 €*

BOLT - CARRIAGE M12-1.75 X 45

R33126-045

11,59 €*

Bolt - hex hd M10-1.5 x 25

R33115-025

1,60 €*

Bolt - hex hd 3/8-16 x 7/8

R400260

2,02 €*

WASHER - FLAT 3/8 SAE Y/ZINC

R453011

0,33 €*

Ring - retaining reel

R458013

1,29 €*

WASHER - LOCK 10MM

R48-9590

0,69 €*
